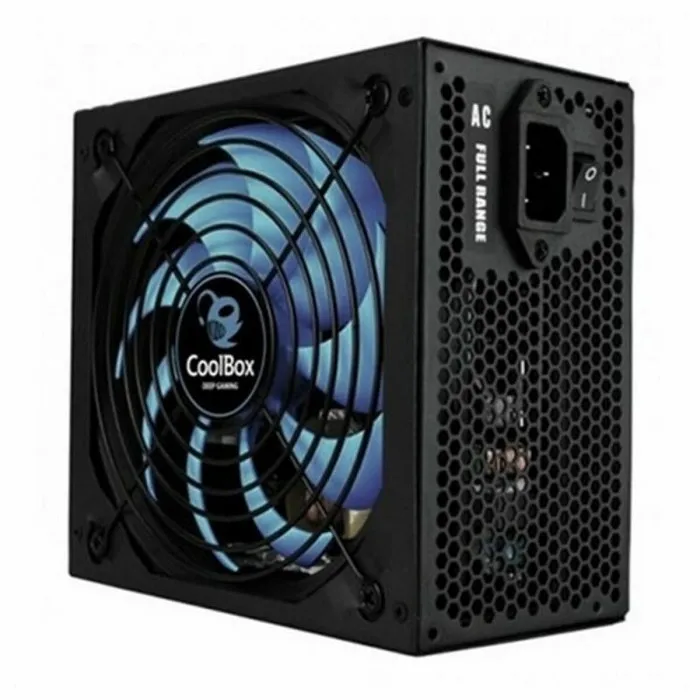

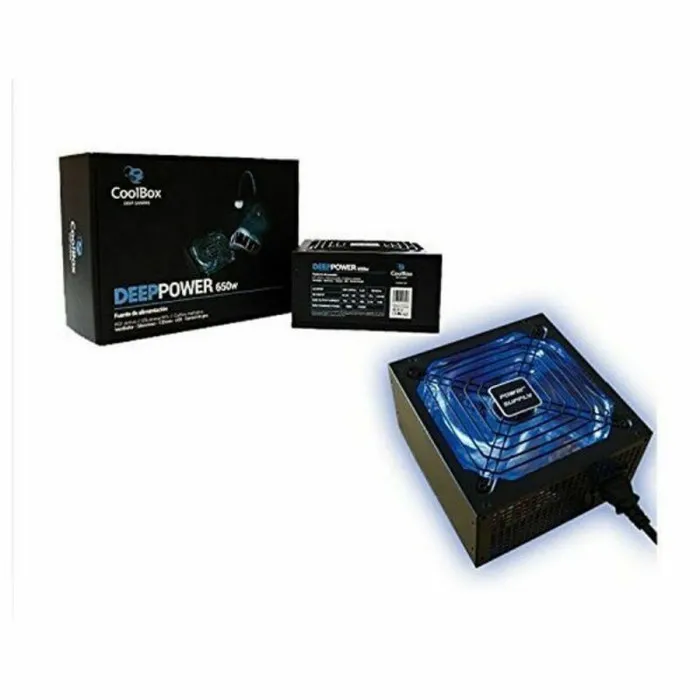

Power supply CoolBox DeepPower BR-650 ATX 650 W

• Form factor: ATX
• Power: 650 W
• Connections:
  • ATX 24 pin x 1
  • 12V 8 pin x 1
  • SATA x 4
  • Molex 4 PIN x 1
  • Molex FDD x 1
  • PCIe 8 PIN x 1
  • 24 PIN x 1
  • PCI Express
  • SATA
  • Molex 4-pin x 4
• Temperature: 0ºC-40ºC
• Voltage:
  • 100-240 V
  • 100 - 240 V
• Certificate: 80 Plus Bronze
• Approx. dimensions: 15,8 x 15 x 8,5 cm
• Type: Power supply
• Product with plug: Yes
• Type of plug: Plug EU
• Colour: Black
• Characteristics: On/off interrupter
• Year: 2018
• Power supply: CA cable
• Connectors:
  • Diskette unit
  • SATA x 4
• Frequency: 50 - 60 Hz
• Noise level: 25 dB
• Includes: User manual

CoolBox DeepPower BR-650. Total power: 650 W, AC input voltage: 100 - 240, AC input frequency: 50 - 60. Fan diameter: 14 cm, Number of fans: 1 fan(s), Fan location: Top. Motherboard power connector: 20+4 pin ATX. Purpose: PC/server, Power supply unit (PSU) form factor: ATX, Noise level: 25 dB. Colour of product: Black

• Total power: 650 W
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Maximum input current (@110V): 8 A
• Maximum input current (@220V): 4 A
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 115 W
• Combined power (+12V): 528 W
• Combined power (+5V): 115 W
• Combined power (-12V): 6 W
• Combined power (+5Vsb): 12.5 W
• Max output current (+3.3V): 18 A
• Max output current (+12V1): 22 A
• Max output current (+12V2): 22 A
• Max output current (+5V): 18 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 2.5 A
• Hold time: 17 ms
• Efficiency: 85%
• Power protection features: Over power, Over voltage, Short circuit, Under voltage
• Power Good signal delay range: 100 - 500 ms
• Fan diameter: 14 cm
• Number of fans: 1 fan(s)
• Fan location: Top
• Cooling type: Active
• Motherboard power connector: 20+4 pin ATX
• Peripheral (Molex) power connectors (4-pin): 4
• Number of SATA power connectors: 4
• PCI Express power connectors (6+2 pin): 1
• CPU power connector (4+4 pin): Y
• Floppy drive power connector: 1
• PCI Express connector: Y
• Floppy disk drive connector: Y
• Purpose: PC/server
• Power supply unit (PSU) form factor: ATX
• Noise level: 25 dB
• ATX version: 2.31
• On/off switch: Y
• Mean time between failures (MTBF): 100000 h
• Colour of product: Black
• Operating temperature (T-T): 0 - 40 °C
• Weight: 2.1 kg
• 80 PLUS certification: 80 PLUS Bronze
• RoHS compliance: Y
• Certification: CE, WEEE
• Package type: Box
• Manual: Y
• Cables included: AC
