Power supply CoolBox FALCOO500TGR Grey 500 W ATX TFX

• Power: 500 W
• Ventilator: Ø 8 cm
• Temperature: 0ºC-50ºC
• Approx. dimensions: 17,5 x 6,5 x 8,5 cm
• Type:
  • Power supply
  • TFX
• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • 24 PIN x 1
  • Molex 4 PIN x 1
• Colour: Grey
• Form factor: ATX
• Voltage: 230 V
• Frequency: 50 Hz
• Connectors: Diskette unit
• Includes: Instruction manual
• Recommended use: PC
• Approx. diameter: Ø 80 cm
• Energy consumption: 0,5 kWh
• Amperage:
  • 2,5 A
  • 26 A
  • 22 A
• Accuracy (relative humidity): 10 % - 85 %

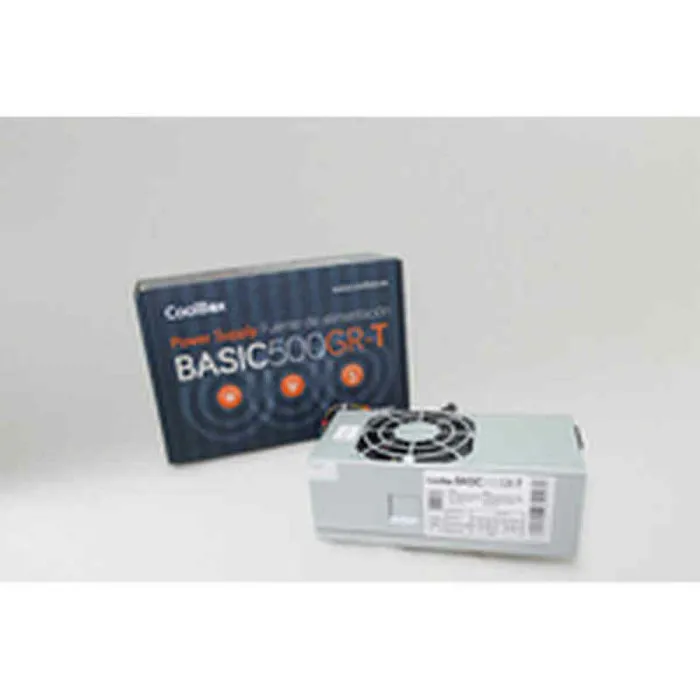

CoolBox BASIC500GR-T. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: TFX, Mean time between failures (MTBF): 100000 h. Product colour: Grey, Cooling type: Active, Fan diameter: 8 cm. Width: 85 mm, Depth: 175 mm, Height: 65 mm

• Total power: 500 W
• AC input voltage: 230 V
• AC input frequency: 50 Hz
• Input current: 2.5 A
• Max output current (+3.3V): 22 A
• Max output current (+12V1): 26 A
• Max output current (+5V): 22 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 2.5 A
• Power protection features: Over current, Over voltage, Short circuit
• Motherboard power connector: 20+4 pin ATX
• Peripheral (Molex) power connectors (4-pin): 1
• Number of SATA power connectors: 3
• CPU P4 connector (4-pin): 1
• ATX power connector (20+4 pin): Y
• Floppy drive power connector: 1
• Floppy disk drive connector: Y
• Purpose: PC
• Power supply unit (PSU) form factor: TFX
• Mean time between failures (MTBF): 100000 h
• Product colour: Grey
• Cooling type: Active
• Fan diameter: 8 cm
• Fan location: Top
• Operating temperature (T-T): 0 - 50 °C
• Operating relative humidity (H-H): 10 - 85%
• Width: 85 mm
• Depth: 175 mm
• Height: 65 mm
• Weight: 750 g
• Manual: Y
