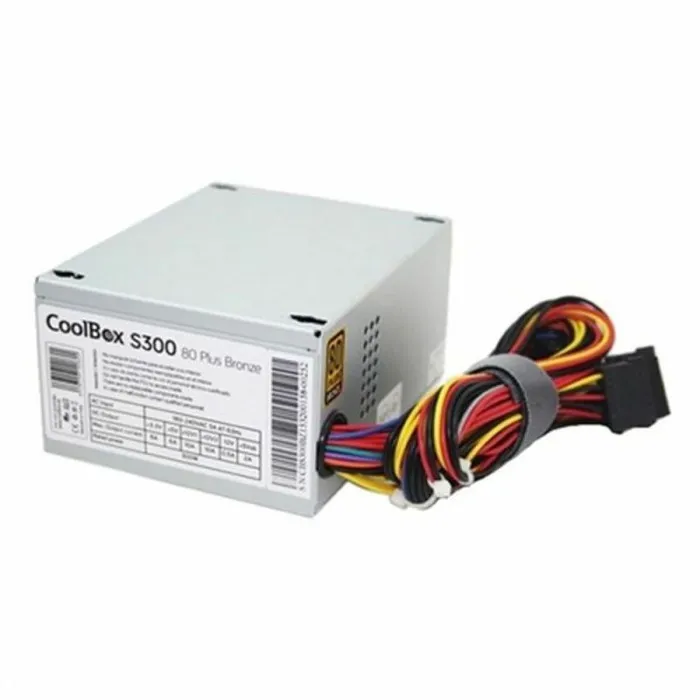

Power supply CoolBox FALCOO300SBZ Silver 300 W 80 Plus Bronze

• Type:
  • SFX
  • Power supply
• Ventilator: Ø 8 cm
• Connections:
  • ATX 24 pin x 1
  • CPU 12V 4 PIN x 1
  • FDD x 1
  • SATA x 3
  • Molex HDD x 1
  • 24 PIN x 1
  • Molex 4 PIN x 1
• Temperature: 0ºC-50ºC
• Certificate: 80 Plus Bronze
• Approx. dimensions: 12,5 x 6,2 x 10 cm
• Product with plug: Yes
• Type of plug: Plug EU
• Power: 300 W
• Voltage: 220 V
• Connectors: Diskette unit
• Colour: Silver
• Frequency: 47-63 Hz
• Recommended use: PC
• Amperage:
  • 2 A
  • 6 A
  • 10 A
• Approx. diameter: Ø 80 cm
• Form factor: SFX

CoolBox S300. Total power: 300 W, AC input voltage: 180 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Silver, Fan diameter: 8 cm. Width: 125 mm, Depth: 100 mm, Height: 62 mm

• Total power: 300 W
• AC input voltage: 180 - 240 V
• AC input frequency: 47 - 63 Hz
• Max output current (+3.3V): 6 A
• Max output current (+12V1): 10 A
• Max output current (+12V2): 10 A
• Max output current (+5V): 6 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 2 A
• Power protection features: Over current,Over voltage,Short circuit
• Motherboard power connector: 20+4 pin ATX
• Peripheral (Molex) power connectors (4-pin): 1
• Number of SATA power connectors: 3
• CPU P4 connector (4-pin): 1
• ATX power connector (20+4 pin): Y
• Floppy disk drive connector: Y
• Purpose: PC
• Power supply unit (PSU) form factor: SFX
• 80 PLUS certification: 80 PLUS Bronze
• Mean time between failures (MTBF): 100000 h
• Product colour: Silver
• Fan diameter: 8 cm
• Operating temperature (T-T): 0 - 50 °C
• Operating relative humidity (H-H): 10 - 85%
• Width: 125 mm
• Depth: 100 mm
• Height: 62 mm
• Weight: 593 g
